SaunaBox® Forge 1-Person
SaunaBox® Forge 1-Person
SKU: SKU: 901857
This is a carousel with product media. Use Next and Previous buttons to navigate, or jump to a slide.
This is a carousel with product media thumbs. Use the thumbs to navigate, or jump to a slide.
Product Overview

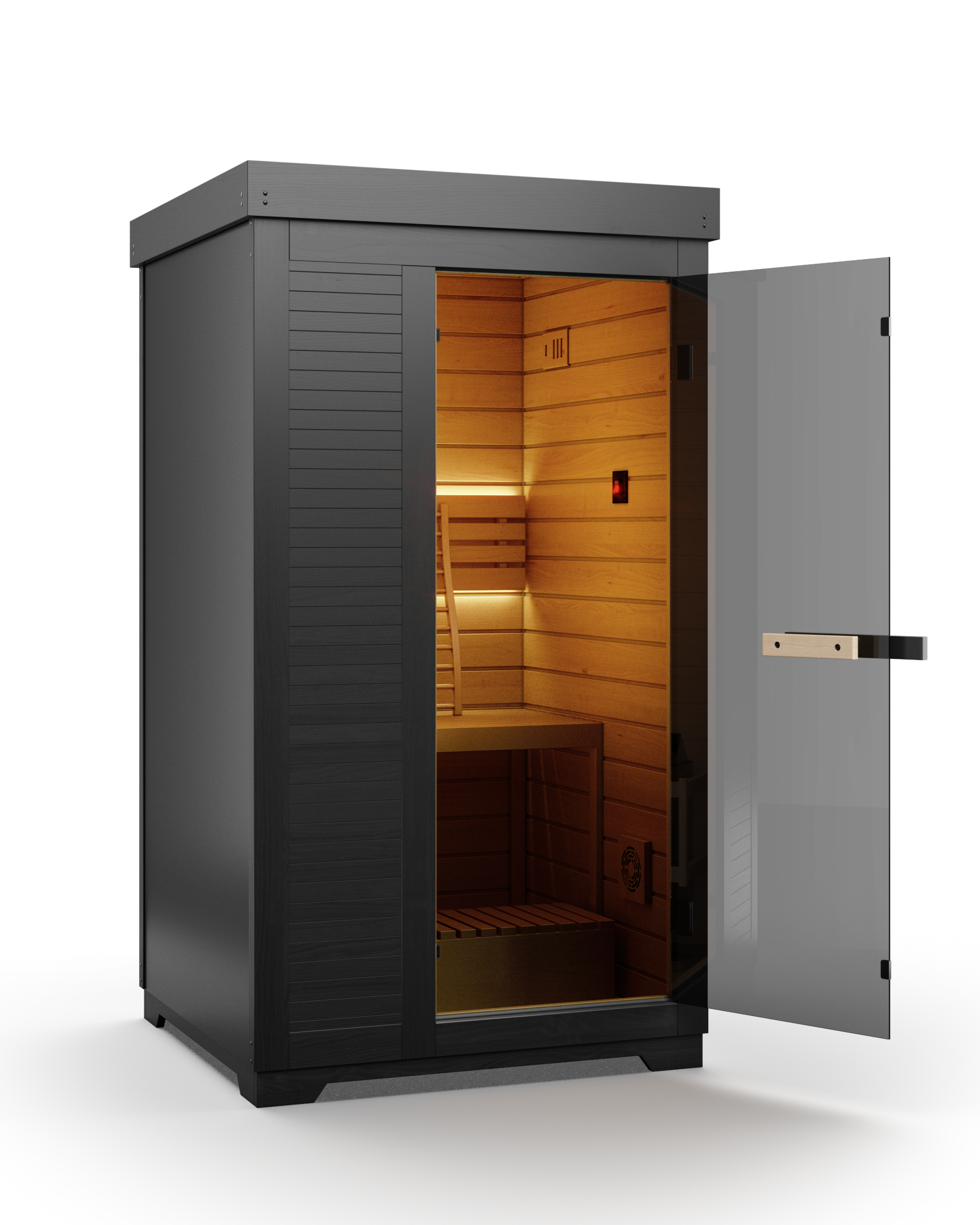

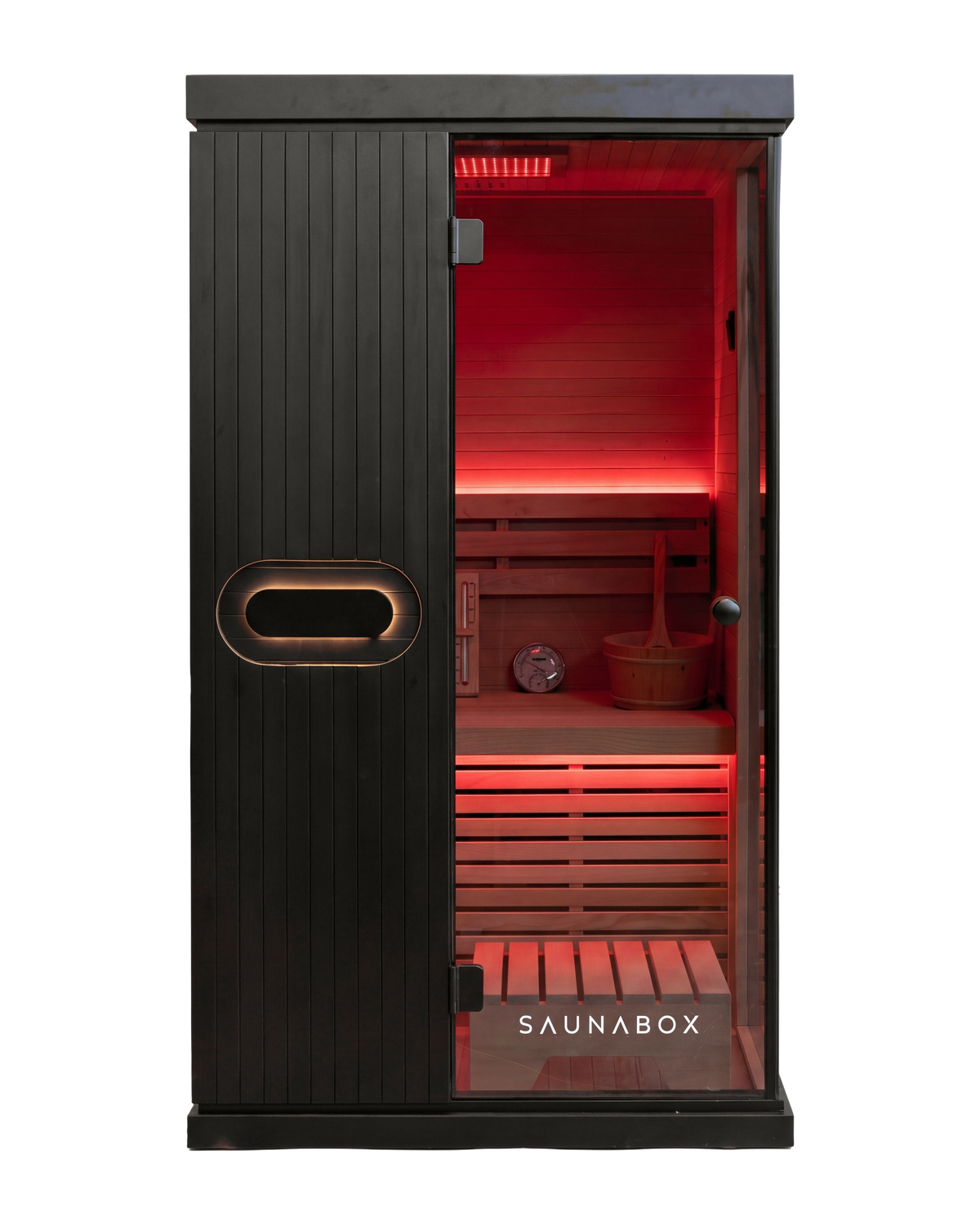

Meet the Forge™ — a precision-built outdoor sauna crafted for those who take recovery seriously. Designed with architectural intention and wrapped in 100% Canadian Hemlock, Forge blends natural warmth with modern edge. Clean lines. Black-tinted tempered glass. Soft ambient lighting. Every detail is engineered to elevate the ritual.
The powerful 3.5kW wall-mounted heater reaches temperatures up to 220°F, delivering a deep, enveloping heat that rivals traditional spa-grade saunas.
Built for outdoor performance and year-round durability, Forge is weather-resistant and engineered to withstand the elements—rain, sun, and snow alike.
KEY FEATURES
-
100% Canadian Hemlock Construction
Naturally aromatic, sustainably sourced, moisture-resistant, and built to last. -
Reaches Up to 220°F
Deep, immersive heat for serious sweat sessions. -
3.5kW Wall-Mounted Heater
Powerful, consistent performance. -
Black-Tinted Tempered Glass Door
Sleek privacy with a modern architectural feel -
Integrated Ambient Lighting
Soft illumination designed for a calming, refined atmosphere. -
Weather-Resistant Outdoor Design
Built specifically for exterior installation. -
Complete Accessory Kit Included
Sauna rocks, water bucket & ladle, and wooden foot stool.
WHAT ELECTRICAL SET UP IS REQUIRED?
- The Forge is hardwired to a dedicated 240V circuit and must be installed by a licensed electrician. This is not a plug-in sauna. The electrical connection is a one-time installation — once it is done, the sauna operates with no ongoing electrical maintenance.
WHAT ELECTRICAL CIRCUIT DOES THE FORGE REQUIRE?
- A dedicated double-pole 240V circuit, typically protected by a 20A double-pole breaker. The heater draws 14.4A at operating load. Confirm the exact breaker size with your local electrician.

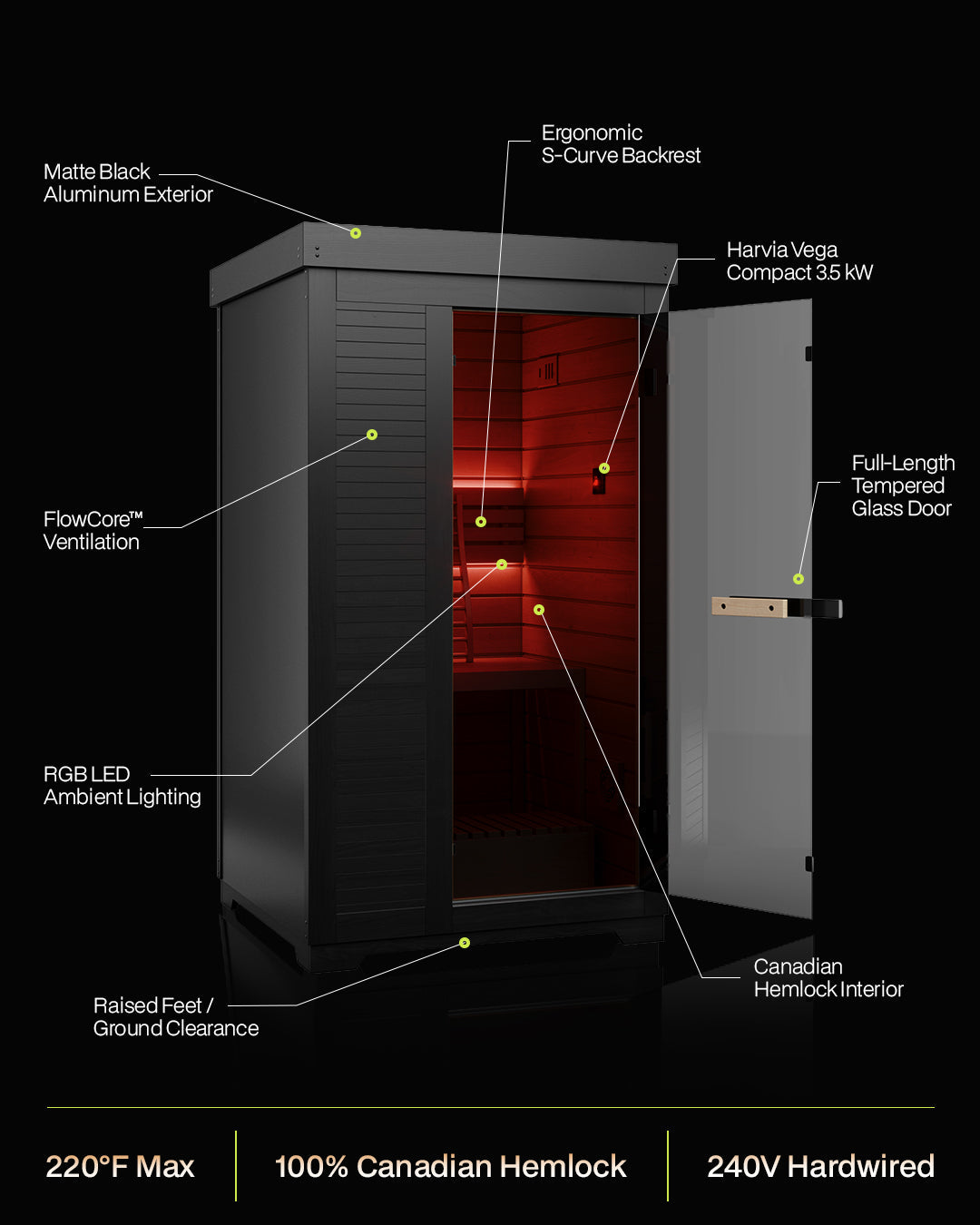

Details

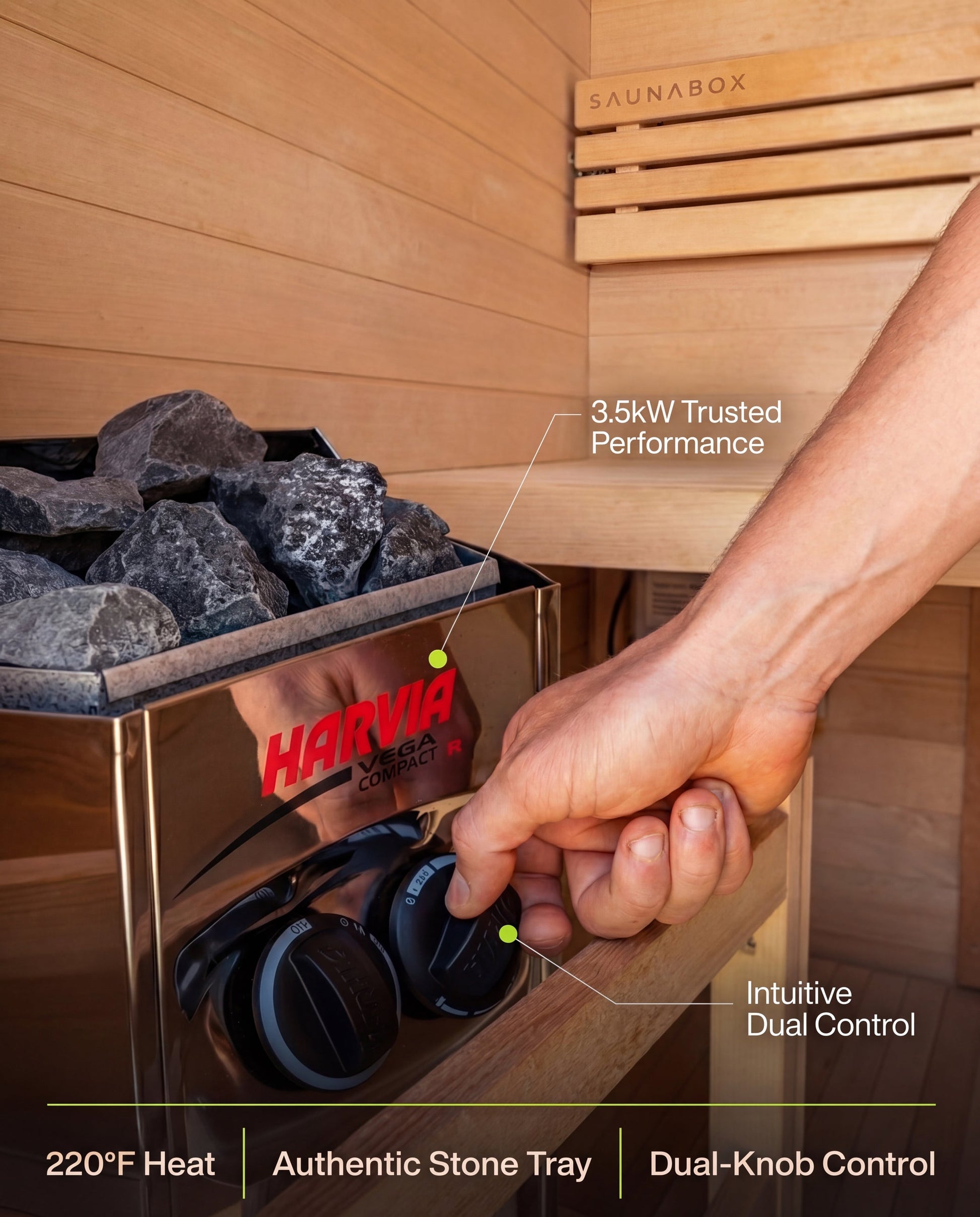

- Harvia Vega Compact 3.5 kW electric heater — Finnish commercial-grade, the same unit used in professional spa installations worldwide
- Heats to 170°F in approximately 25 minutes from a cold start
- Heats to 220°F in approximately 40 minutes from a cold start
- Full-length tempered glass door with matte black hinges and Saunabox-branded horizontal pull handle
- Matte black aluminum exterior paneling over a cedar frame — built for year-round outdoor use
- Canadian hemlock interior — light-toned, low-resin, low-odor wood that stays cool to the touch at full temperature
- Single bench with ergonomic S-shaped backrest for extended, comfortable sessions

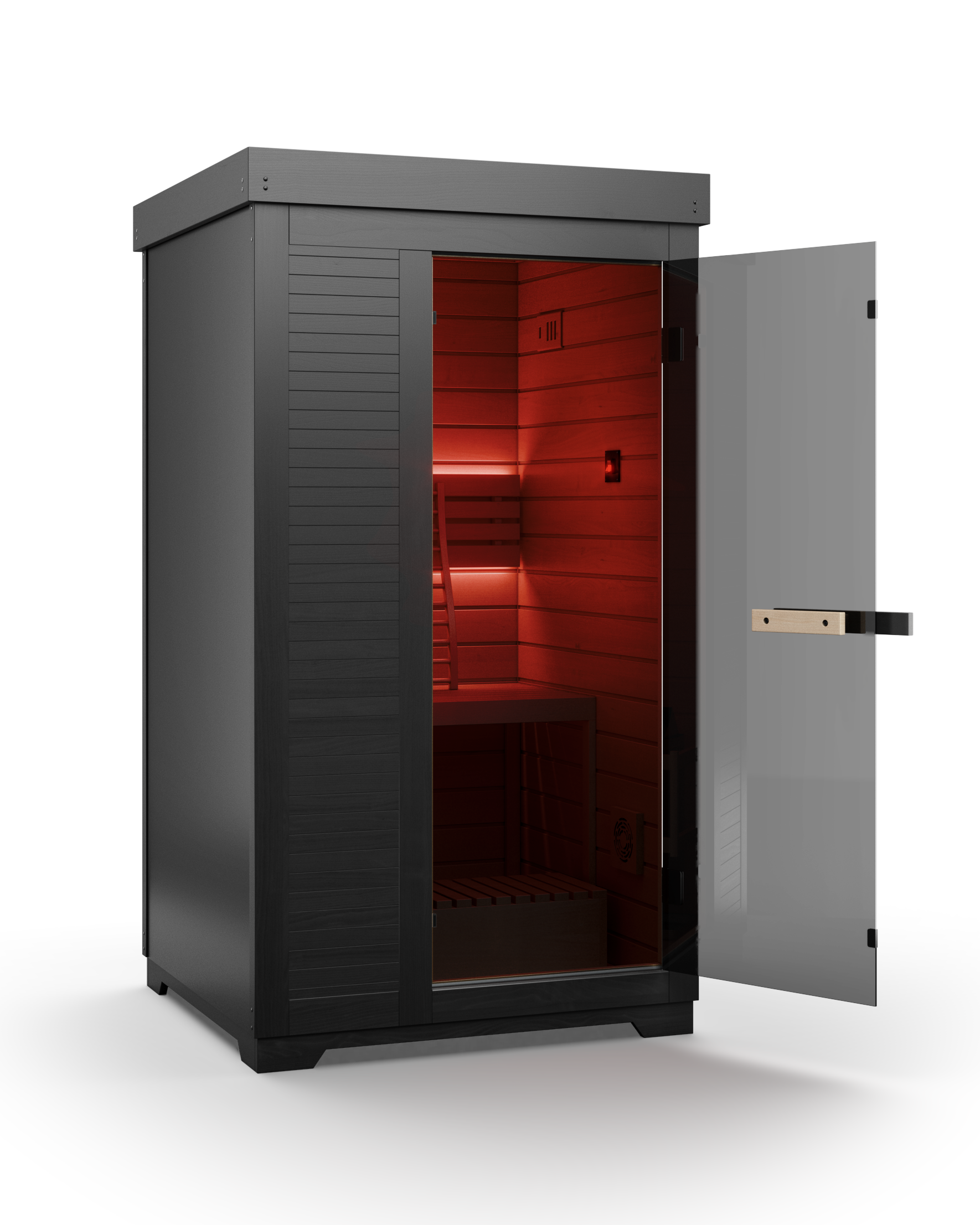

- RGB LED ambient lighting (color-selectable) under the bench and overhead
- Slatted wood flooring — elevated for drainage and barefoot comfort
- Active ventilation system: 1 fan + 2 vents (intake + exhaust)
- Louvered black vent panel on the exterior for passive airflow
- Raised feet for ground clearance — promotes drainage and airflow underneath the cabin
- Hardwired 240V installation — no cords, no adapters, permanent setup
- Compact outdoor footprint: 1.10 m wide × 1.05 m deep (43.3 × 41.3 in)
- Matte black hardware throughout — hinges, handle, vent panel, and accessories

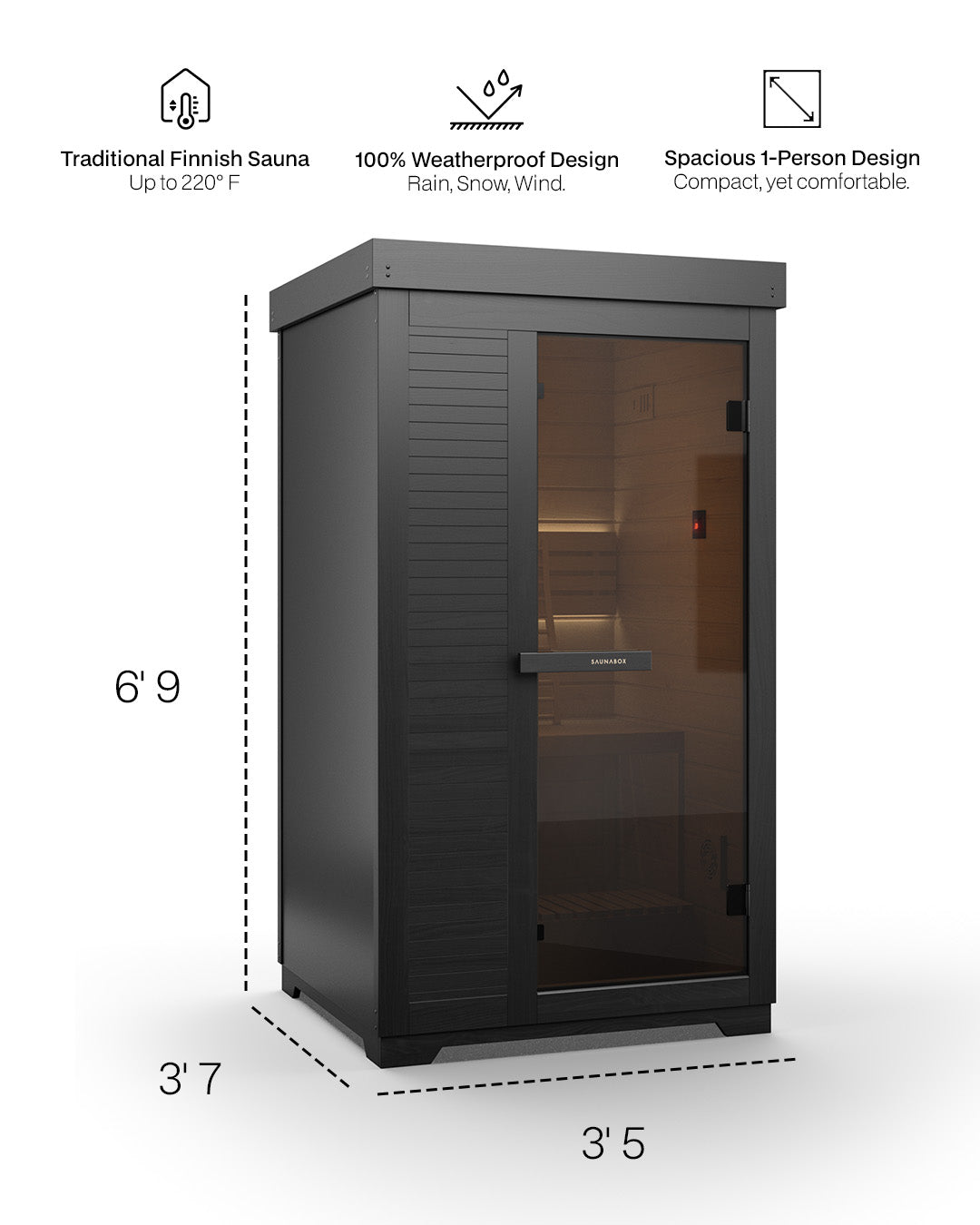

EXTERIOR DIMENSIONS
- External Height: 80.71-in.
- External Width: 43.31-in.
- External Depth: 41.34-in.
INTERIOR DIMENSIONS
- Internal Height: 72.83-in.
- Internal Width: 39.37-in.
- Internal Depth: 37.80-in.
DOOR DIMENSIONS
- Door Glass Height: 64.96-in.
- Door Glass Width: 23.62-in.
BENCH DIMENSIONS
- Bench Height (floor to top of bench): 26.38-in.
- Bench Depth (front to back): 20.47-in.
- Bench Slat Thickness: 2.36-in.
ELECTRICAL SPECIFICATIONS
- Heater: Harvia Vega Compact BU — 3.5 kW (Model #HCBU352401)
- Voltage: 240V
- Current Draw: 14.4A
- Breaker: Dedicated double-pole breaker (typically 20A — confirm with local electrician)
- Wire Gauge: 14/2 copper conductor
- Installation: Hardwired — must be installed by a licensed electrician
- Cord/Plug: Not included
- Alternative Configuration: Harvia Vega Compact 1.9 kW / 120V available (Model #HCBU1912241) — contact SaunaBox before ordering
POWER DRAW
- Heater (Harvia Vega Compact): 3,500W / 3.5 kW
- Lighting (RGB LED strip): 60W
- Ventilation fan: 60W
- Total peak power draw: ~3,620W
TEMPERATURE & AIRFLOW
- Maximum operating temperature: 220°F (104.4°C)
- Heat-up time to 170°F: ~25 minutes from cold start
- Heat-up time to 220°F: ~40 minutes from cold start
- Heater capacity rating: 70.5 – 175 cu ft (Harvia-rated for the 3.5 kW Vega Compact)
- Ventilation: Active — passive intake/exhaust vents plus powered fan circulation
- Fan count: 1 (60W)
- Vent count: 2 (intake + exhaust)
MATERIALS & FINISH
- Interior wood: Canadian Hemlock
- Exterior cladding: Matte black aluminum paneling
- Exterior framing: Cedar
- Door: Full-length tempered glass
- Door hardware: Matte black hinges + horizontal Saunabox-branded pull handle
- Side ventilation: Louvered black panel
- Interior lighting: RGB LED strip (color-selectable ambient)
- Seating: Single bench with S-shaped ergonomic backrest
- Flooring: Elevated slatted wood
- Hardware finish: Matte black throughout
- Base: Raised feet (ground clearance for drainage and airflow)
WEIGHT & SHIPPING
- Unit net weight (assembled product): 471.8 lb.
- Gross shipping weight (product + crate): 571.0 lb.
- Packaging: 1 consolidated plywood crate (~45 kg)
- Crate external dimensions: 85.0"L × 59.4"W × 37.8"H
- Crate shipping volume: 110.6 cu ft
- Shipping method: LTL freight
- Handling requirement: Forklift or 2-person team + pallet jack
